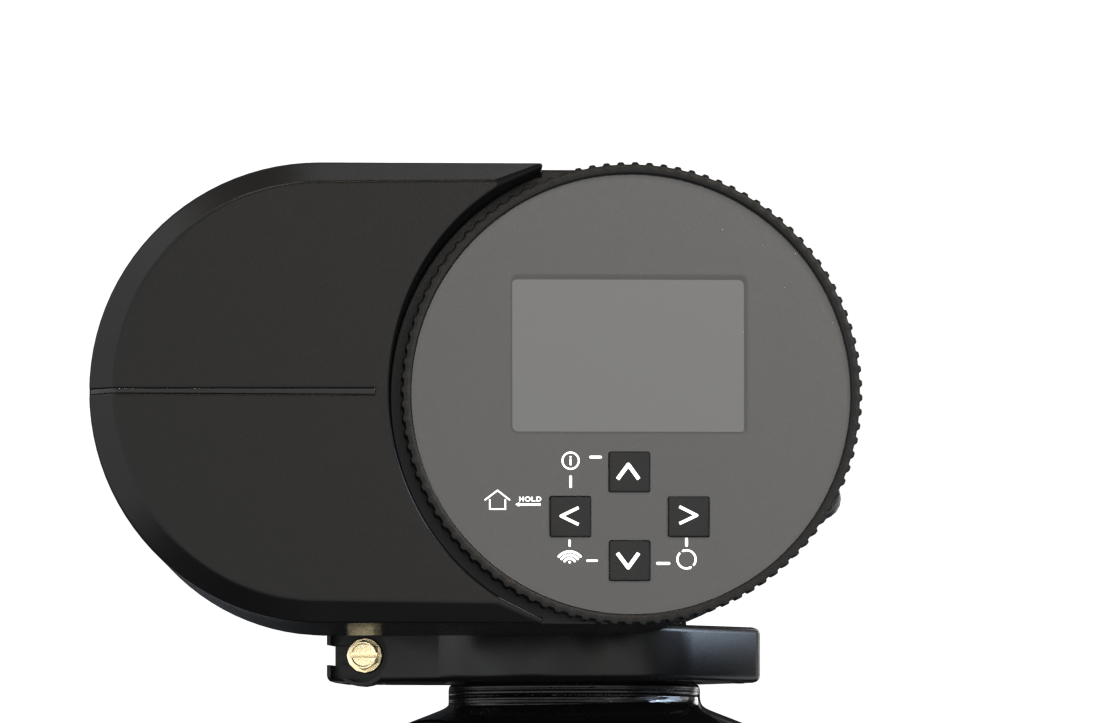

Fleck 2510 AIQ Softener Valve With 1" SS Bypass

The Fleck 2510 AIQ is the next generation of the trusted 2510 platform and the direct replacement for the Fleck 2510 SXT softener valve. It keeps the same high-flow valve body that made the 2510 SXT a favorite and adds Fleck's new AIQ controller. Its larger internal porting gives better flow with less pressure drop than most residential valves. The full-color display and intuitive menus make setup and programming quick, and the modular powerhead makes service simple. It's a smart, durable meter-demand valve built for years of dependable soft water.

Replaces the Fleck 2510 SXT

Pentair has discontinued the Fleck 2510 SXT valve, and the 2510 AIQ is its replacement. If you're replacing or upgrading an existing 2510 SXT system, the 2510 AIQ uses the same 2510 valve body, the same 19 GPM service flow and the same 2-1/2" – 8 NPSM tank mount. It fits the same 8" – 16" tanks your 2510 SXT ran on.

Features

• New AIQ controller with full-color display, quick-start menu and a wrap-around status light bar so you can see valve status at a glance
• USB-C port for programming, software updates, usage history and diagnostics
• Flexible regeneration: meter immediate, meter delayed, time clock, day of week, or remote start through a dry contact
• Hydraulically balanced piston, seals and spacers for smooth, reliable operation in service and regeneration
• Non-corrosive, fiber-reinforced polymer valve body
• 19 GPM continuous and 24 GPM peak flow
• 17 GPM backwash, enough for softener and filter tanks up to 16" in diameter
• Modular powerhead design with a simple 4-step install and teardown

Valve Specifications

• Inlet/Outlet: 1"
• Continuous Service Flow: 19 GPM (15 psi drop)
• Peak Service Flow: 24 GPM (25 psi drop)
• Maximum Backwash Flow: 17 GPM
• Cv: 4.8
• Operating Pressure: 20–125 psi
• Water Temperature: 34–110°F
• Electrical: 24 VDC controller with included 100–240 VAC, 50/60 Hz transformer
• Drain Line: 1/2" NPTF
• Brine Line: 3/8" (1650 brine system)
• Mounting Base: 2-1/2" – 8 NPSM top mount
• Riser/Distributor Tube: 3/4" (1.050" OD)
• Tank Sizes: 8" – 16" diameter

Included

• Fleck 2510 AIQ valve with AIQ controller
• 1" stainless steel bypass
• Drain line hose barb fitting
• Power transformer

Resources


Fleck 2510 AIQ Manual


Fleck AIQ Spec Sheet


Fleck AIQ User Guide
