Fleck 2815 Softener Valve With NXT2 Control

Fleck 2815 Softener Valve With NXT2 Control


Regular price $2,275.64
Regular price $4,096.16 Sale price $2,275.64
Sale Sold out

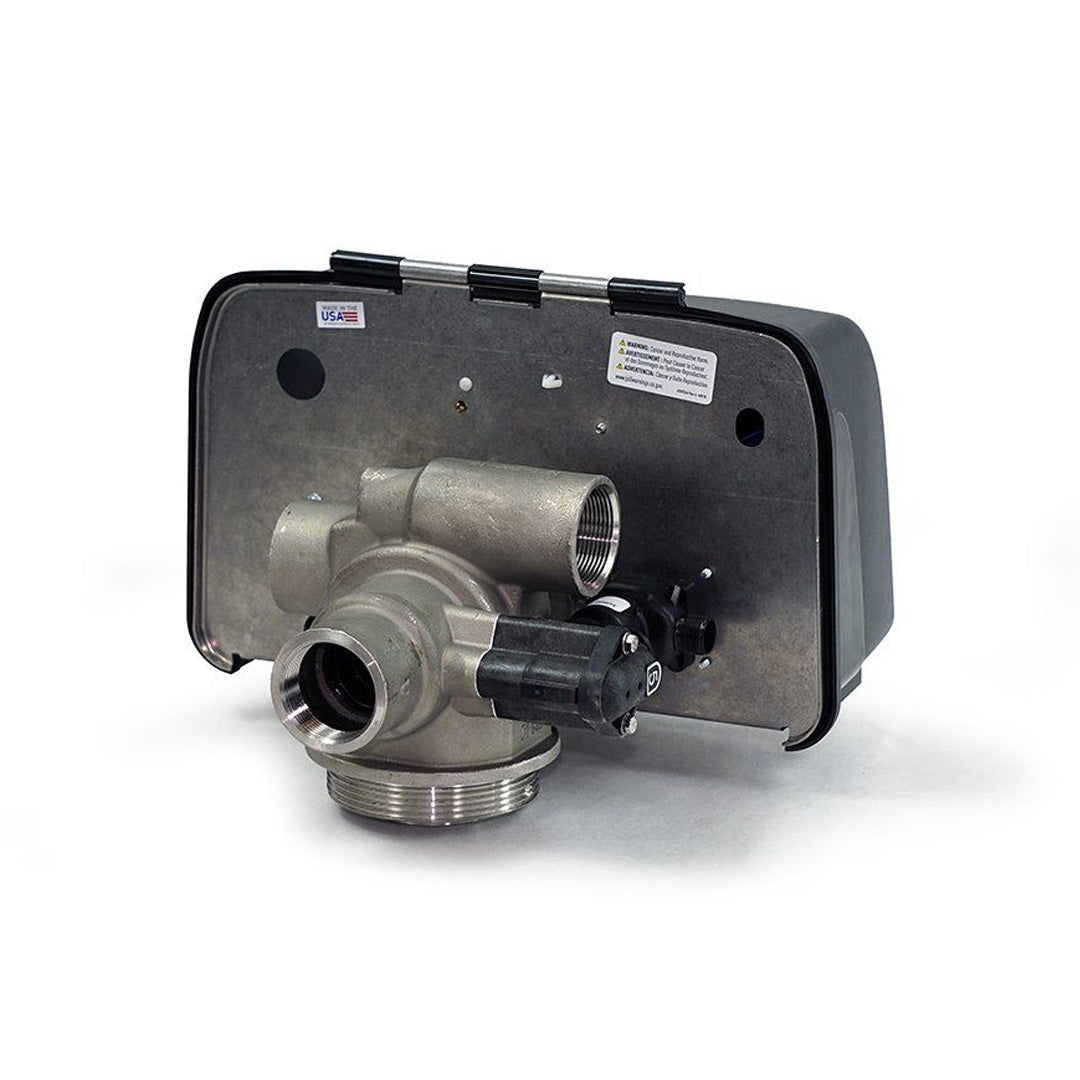

Fleck 2815 NXT2 1.5" Water Softener Valve

The Fleck 2815 is a rugged commercial water softener valve with the advanced NXT2 digital control and electronic meter. The inlet and outlet is 1.5" for continuous flow rate up to 70 GPM.

Valve Options

  • Piston Options
    • Hard water bypass
    • No hard water bypass
  • Valves are custom built to the size tank it's going on


  • Offers best-in-class flow rates in a 1.5" commercial valve
  • Multi-tank system capability
  • Fully adjustable, 5-cycle control delivers controlled upflow backwash, downflow brining and slow rinse, rapid rinse, timed brine refill, and downflow service
  • Time-tested, hydraulically-banalced piston for service flow and regeneration
  • One-piece seal and spacer cartridge simplifies service
  • 316 Grade Stainless Steel valve body for superior strength and durability
  • 1.5" top mount control valve ideal for smaller size commercial/industrial applications
  • Backwash capacity handles up to 36" diameter tanks for softeners
  • Consistent brining regardless of salt levels with timed brine refills
  • Choice of 7-or 12-day clock, manual or volume initiated timers
  • Continuous service flow rate of 70 GPM with a backwash of 70 GPM

Valve Specifications

  • Valve material: 316 Grade Stainless Steel
  • Inlet/Outlet: 1-1/2"
  • Cycles: 5
  • Electrical rating: 24 v, 110-240v - 50/60 Hz
  • Distributor pilot: 1-9/10" O.D.
  • Drain line: 1-1/2" NPTF
  • Injector brine system: 1720 - 1/2" OD Tube
  • Mounting base: 4" - 8 UN
  • Height from top of tank: 9"
