Fleck Systems
Fleck 2900 2" Duplex Commercial Metered Water Softener
Fleck 2900 2" Duplex Commercial Metered Water Softener
SKU:140-29-DX-120-14
Regular price
$8,845.00
Regular price
$14,741.67
Sale price
$8,845.00
Unit price
per
Couldn't load pickup availability

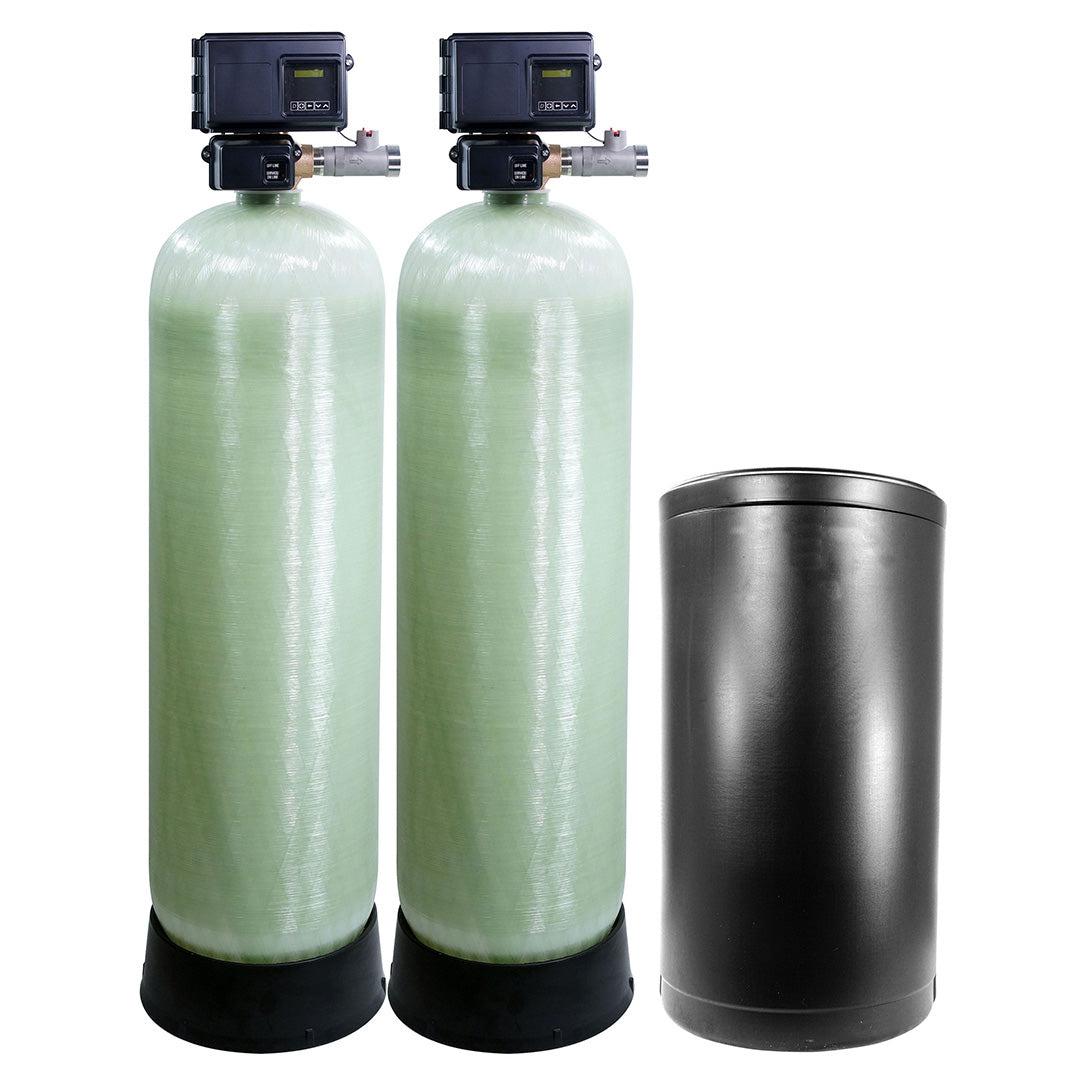

Fleck 2900S 2.0" Duplex Metered Commercial Water Softener
This is a 2" full flow Fleck 2900S duplex water softener with NXT2 controllers and 2" Clack meters. It is a very heavy duty system capable of continuous flow and is available in 120,000 to 600,000 Grain Capacities per tank.
Features
- Two full 2.0" valve for high flow rates.
- Utilizes 8% cross-linked high-capacity ion-exchange resin.
- Utilizes NXT2 Programmable Controllers.
- Up to 600,000 Grain Maximum Capacity.
- User friendly Fleck 2900S control valves with NXT2 Controls.
- The NXT2 Network Controller uses on-board communication capabilities to link multiple commercial valves (via off-the-shelf CAT5 or better cables) for a variety of system types.
- Safety brine valve with aircheck.
- Tank Information:
- 100% composite fiberglass construction.
- Outstanding performance and durability in harsh chemical environments.
- Absolutely will not - and cannot - rust.
- Requires no maintenance.
- Materials of Construction: Polyethylene inner shell (PVDF available).
- Operating Parameters:
- Maximum operating pressure: 150 psi
- Maximum operating temperature: 110°F
- Minimum burst at 600 psi.
- Tested to 250,000 cycles without leakage.
- NSF Certified.
- ASME Tanks Available Upon Request.
- Uses "HUB & LATERAL DISTRIBUTORS" on larger models.
- 5 Year Warranty on Valve, Electronics, & Tanks.
- 1 Year Warranty on Parts & Resin.
Note: Resin can be upgraded to 10% for an additional cost.
| Fleck 2900S System Specifications | |||||||
| Model Number | Cubic Feet Resin | Grain Capacity | Continuous Flow Rate | Peak Flow Rate | Backwash Flow Rate | Resin Tank | Brine Tank |
|
140-29-DX-120-7 |
4.0 |
120,000 | 40 GPM | 57 GPM | 7 GPM | 16" x 65" | 24" x 50" |
|
140-29-DX-150-7 |
5.0 |
150,000 | 50 GPM | 62 GPM | 10 GPM | 18" x 65" | 24" x 50" |
|
140-29-DX-210-7 |
7.0 |
210,000 | 55 GPM | 77 GPM | 12 GPM | 21" x 62" | 24" x 50" |
|
140-29-DX-300-7 |
10.0 |
300,000 | 60 GPM | 95 GPM | 15 GPM | 24" x 72" | 30" x 48" |
|
140-29-DX-450-7 |
15.0 |
450,000 | 75 GPM | 140 GPM | 25 GPM | 30" x 72" | 39" x 48" |
|
140-29-DX-600-7 |
20.0 |
600,000 | 100 GPM | 140 GPM | 35 GPM | 36" x 72" | 50" x 60" |
