Fleck Systems
Fleck 3900 3" Single Tank Commercial Metered Water Softener
Fleck 3900 3" Single Tank Commercial Metered Water Softener
SKU:140-39-S-1200-4M
Regular price
$23,760.00
Regular price
$39,600.00
Sale price
$23,760.00
Unit price
per
Couldn't load pickup availability

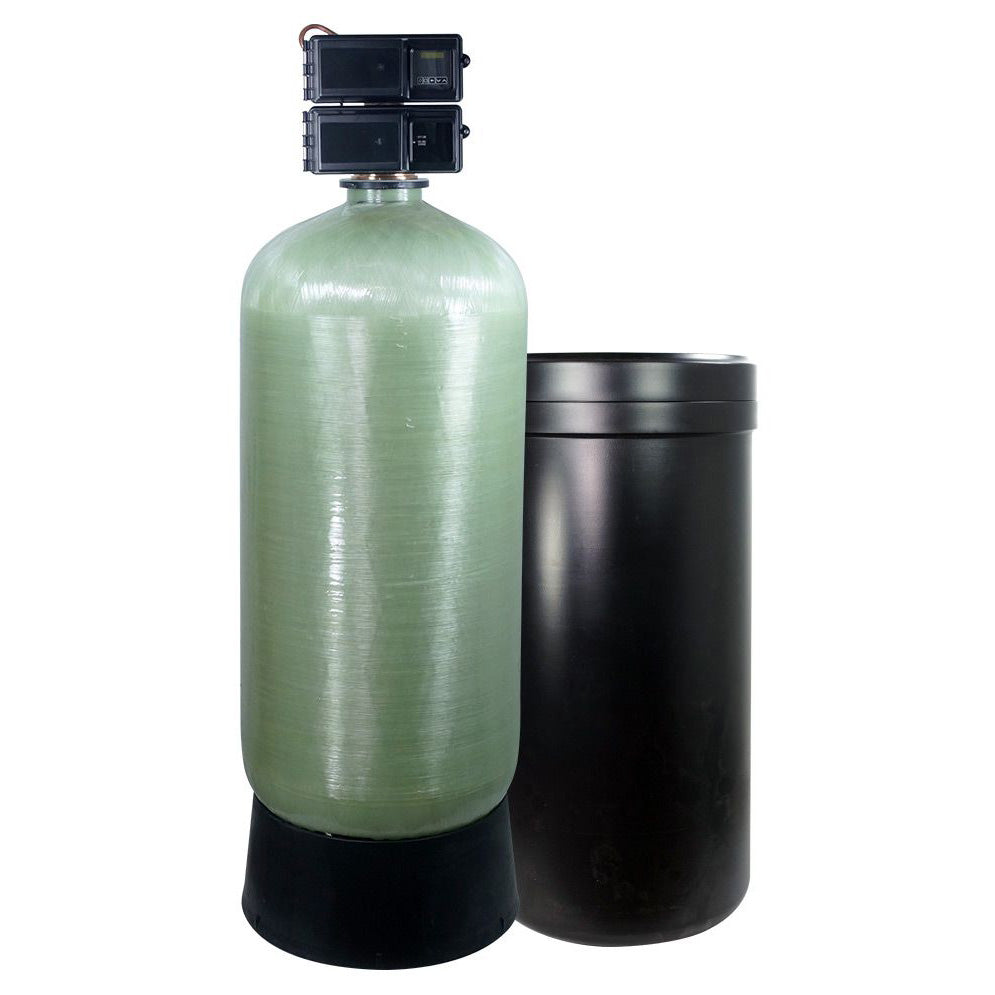

Fleck 3900 3.0" Single Metered Commercial Water Softener
This 3" full flow Fleck 3900 Valve with NXT2 controller and 3" Clack meter is a heavy duty system capable of continuous flow and is available in 450,000 to 1,200,000 Grain Capacities.
Features
- Full 3.0" valve for high flow rates.
- Utilizes 8% cross-linked high-capacity ion-exchange resin.
- Utilizes NXT2 Programmable Controller.
- Up to 1,200,000 Grain Maximum Capacity.
- User friendly Fleck 3900 control valve with NXT2 Controls.
- The NXT2 Network Controller uses on-board communication capabilities to link multiple commercial valves (via off-the-shelf CAT5 or better cables) for a variety of system types.
- Safety brine valve with aircheck.
- Tank Information:
- 100% composite fiberglass construction.
- Outstanding performance and durability in harsh chemical environments.
- Absolutely will not - and cannot - rust.
- Requires no maintenance.
- Materials of Construction: Polyethylene inner shell (PDF available)
- Operating Parameters:
- Maximum operating pressure: 150 psi
- Maximum operating temperature: 110°F
- Minimum burst at 600 psi.
- Tested to 250,000 cycles without leakage.
- NSF Certified.
- ASME Tanks Available Upon Request.
- Uses "HUB & LATERAL DISTRIBUTORS".
- 5 Year Warranty on Valve, Electronics, & Tanks.
- 1 Year Warranty on Parts & Resin.
Note: Resin can be upgraded to 10% for an additional cost
|
Fleck 3900 System Specifications
|
|||||||
| Model Number | Cubic Feet Resin | Grain Capacity | Continuous Flow Rate | Peak Flow Rate | Backwash Flow Rate | Resin Tank | Brine Tank |
|
140-39-S-450-4M |
15.0 |
450,000 | 155 GPM | 210 GPM | 25 GPM | 30" x 72" | 39" x 48" |
|
140-39-S-600-4M |
20.0 |
600.000 | 185 GPM | 250 GPM | 30 GPM | 36" x 72" | 50" x 60" |
|
140-39-S-900-4M |
30.0 |
900,000 | 200 GPM | 270 GPM | 50 GPM | 42" x 72" | 50" x 60" |
|
140-39-S-1200-4M |
40.0 |
1200,000 | 205 GPM | 280 GPM | 65 GPM | 48 x 72" | 50" x 60" |
