Fleck 5600 SXT Meter Valve | 5600SXT

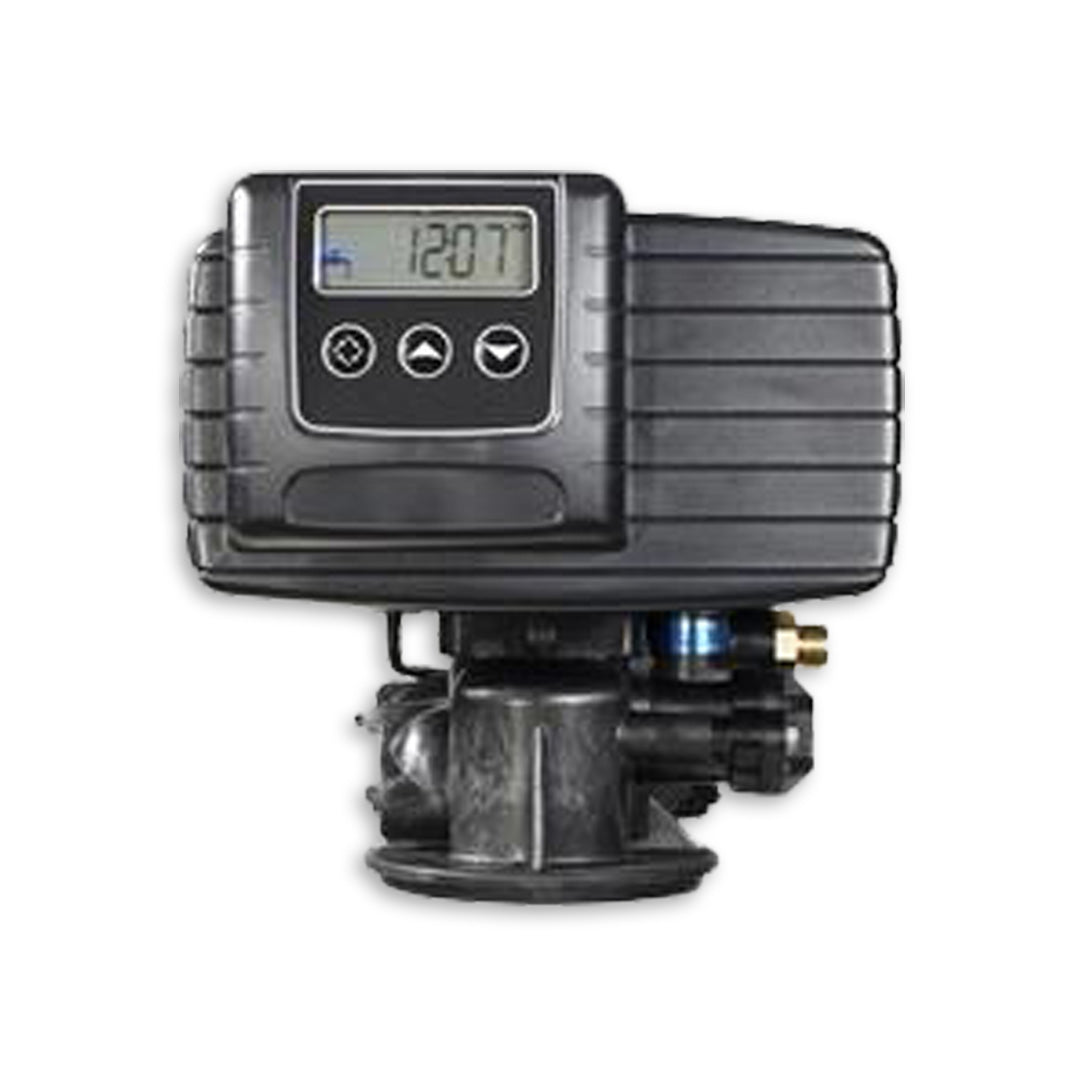

5600SXT Meter Valve (Tank Not Included)

Simple, reliable, and easy-to-use, the Fleck 5600SXT Electronic Meter-Demand Valve is the newest version of one of the most popular systems used throughout the world today. Advanced technology for advanced performance! The newest version of the rugged, time-tested Fleck 5600, the 5600SXT gives the user the benefit of unique programming and diagnostic features previously unavailable on the previous 5600SE. One key NEW feature is the on-board capacitor, which keeps the correct time during a power outage for up to 48 hours! You may also program the system's regeneration sequence individually to maximize efficiency and keep water use to a minimum. Also, the system keeps time electronically, so the drive motor only runs during regeneration, saving the possibility of motor burn-outs, and running more reliably. The 5600SXT Electronic Meter-Demand system can cut salt and water use by as much as 40%! Unlike timer-based systems, the meter-demand system regenerates only when necessary. Coupled with fully-programmable regenerations, the 5600SXT can achieve even greater performance. The end result? Significant savings in both water and salt.**

Features

• Large LCD display with 48 hours of internal power backup capacitor
• LCD display alternates between time of day, volume remaining or days to regeneration, and tank in service (twin tank systems only)
• Compact turbine meter
• Downflow or upflow regeneration cycles
• Choose from 4 modes of operation: immediate meter regeneration, delayed meter regeneration, delayed time clock regeneration or day of week regeneration
• Continuous flow rate of 20 GPM
• Backwash capacity handles tanks up to 12" diameter for softener applications, 10" for filter applications
• Double backwash capability

Valve Specifications

• Valve Material: Fiber Reinforced Polymer
• Inlet/Outlet: 3/4", 1", 1-1/4"
• Cycles: 5
• Electrical Rating: 24 v, 50 Hz, 60 Hz
• Distributor Pilot: .8125" or 1.05" Pipe O.D.
• Drain Line: 1/2" NPTF
• Brine Line: 1600 - 3/8"
• Mounting Base: 2-1/2" - 8 NPSM
• Height From Top of Tank: 7-1/2"

Bypass and connectors sold separately
