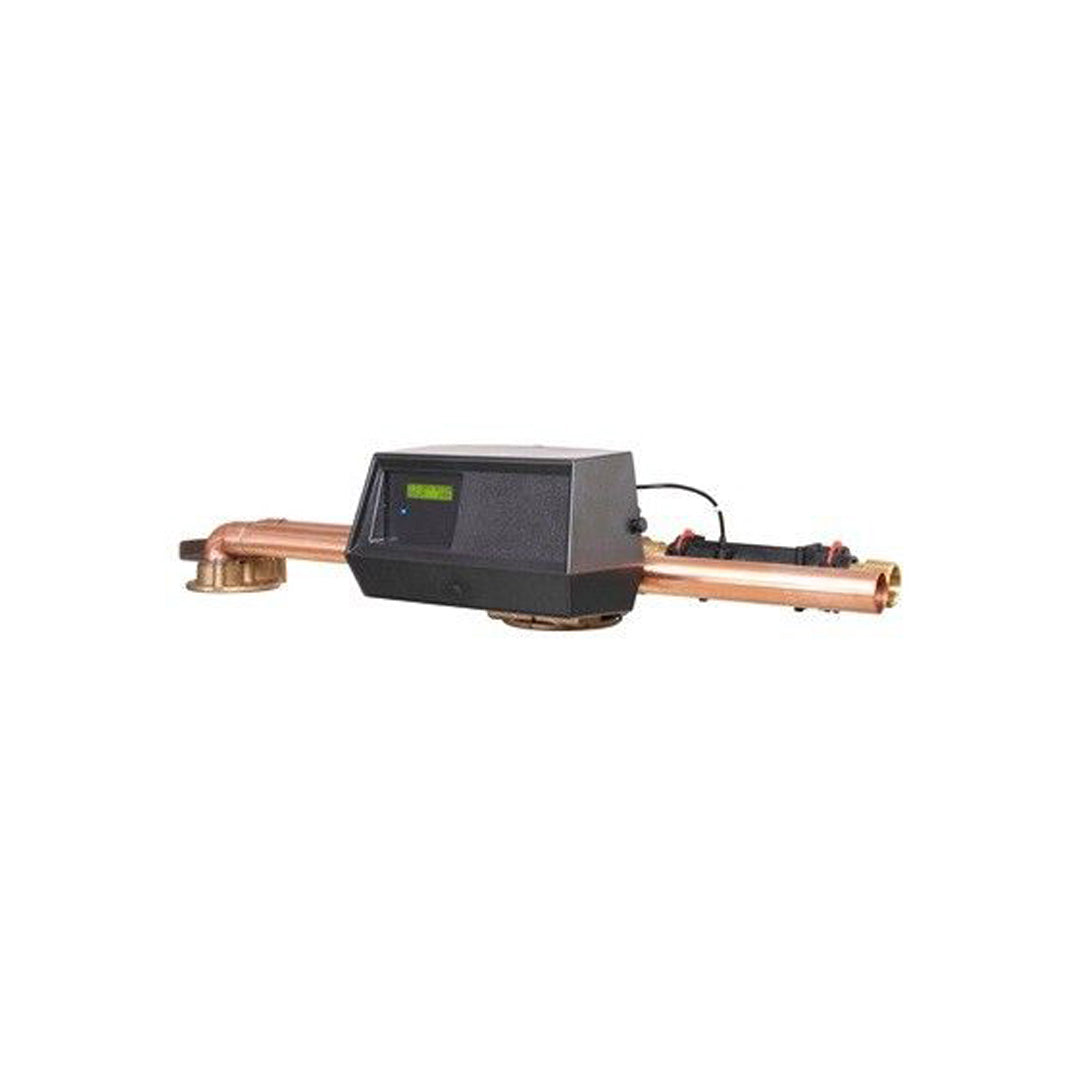

Fleck 9500 Twin Softener Valve With SXT Control

The Fleck 9500 is a twin tank rugged residential/commercial water softener valve with the advanced SXT digital control and electronic meter. The inlet and outlet is 1.5" for continuous flow rate up to 38 GPM.

Valve Options

• Valves are custom built to the size tank it's going on

Features

• Fully adjustable, 5-cycle control delivers controlled upflow backwash, downflow brining and slow rinse, rapid rinse, timed brine refill, and downflow service
• Backwash capacity handles tanks up to 24" diameter
• Solid, lead-free brass* valve body for superior strength and durability
• Uses conditioned water for regeneration
• Salt and water savings by using 100% capacity of the tank in service before switching to the second tank
• Regenerates immediately when needed for continuous soft water
• Regenerates with soft water and keeps system clean for optimum operating efficiency and minimum maintenance

Valve Specifications

• Valve material: Lead-free brass*
• Inlet/Outlet: 1-1/2"
• Cycles: 5
• Electrical rating: 24 v, 110 v, 200 v - 50 Hz, 60 Hz
• Distributor pilot: 1.5" pipe I.D.
• Drain line: 1" NPTM
• Injector brine system: 1/2" & 3/8"
• Mounting base: 4" - 8 UN
• Height from top of tank: 7-1/4"

*As defined in the U.S. EPA Safe Drinking Water Act; the product also meets California Proposition 65 Standards

Resources

Fleck 9500 Spec Sheet

Fleck 9500 Service Manual

Fleck SXT Spec Sheet

Fleck SXT Service Manual
